Overview

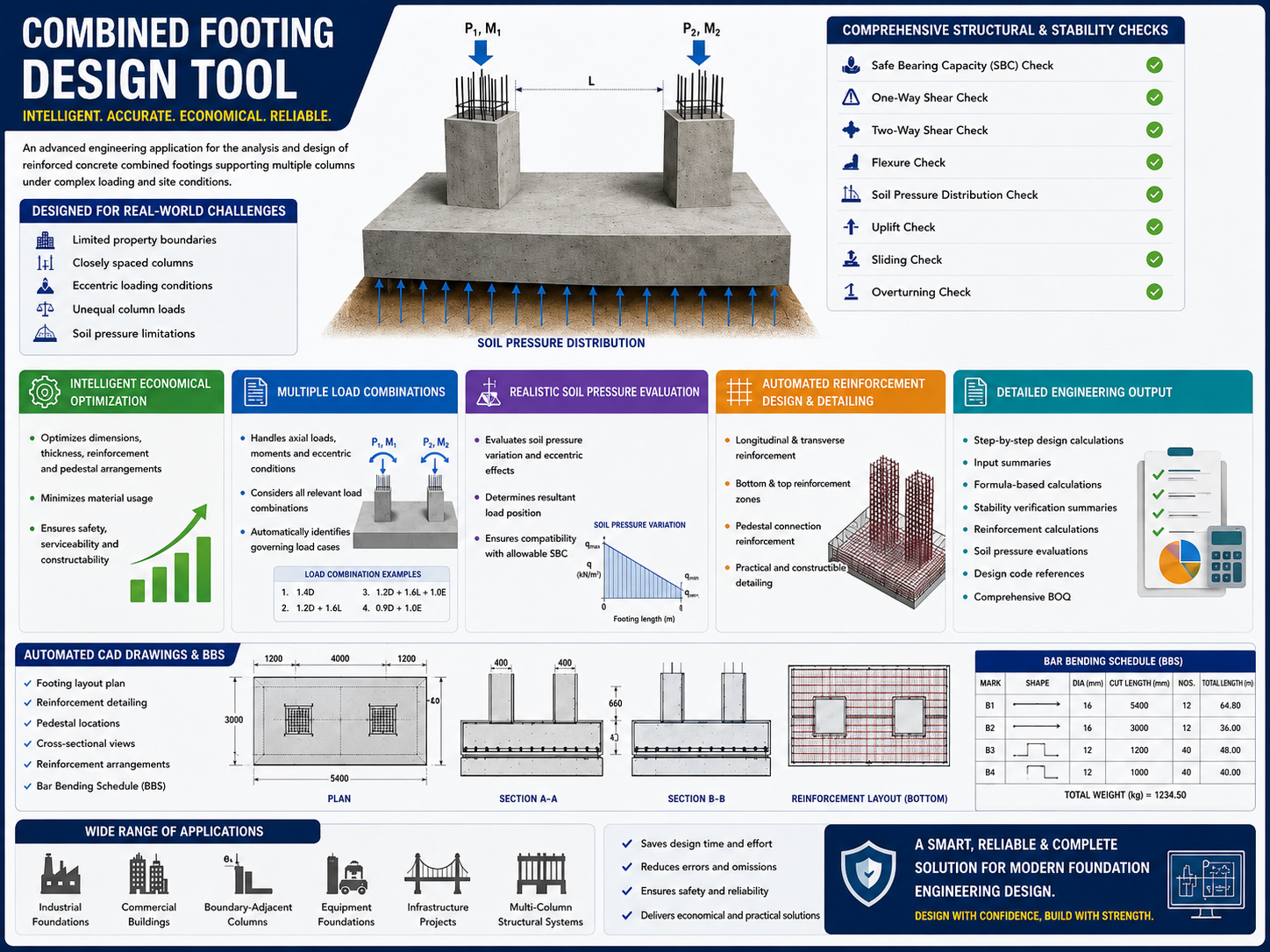

The Combined Footing Design Tool is an advanced automated engineering application developed for the analysis and design of reinforced concrete combined footings supporting multiple columns under complex loading conditions.

The software is intended for use in residential, commercial, industrial, and infrastructure projects where isolated footings are impractical due to:

• Limited property boundaries
• Closely spaced columns
• Eccentric loading conditions
• Unequal column loads
• Soil pressure limitations

The application combines intelligent optimization, comprehensive structural verification, and automated detailing to deliver safe, economical, and practical combined footing designs.

Intelligent Economical Footing Optimization

The software employs an advanced iterative design methodology to identify the most cost-effective footing configuration while satisfying all structural and geotechnical requirements.

The optimization process evaluates:

• Footing dimensions
• Footing thickness
• Reinforcement quantities
• Pedestal arrangements
• Soil pressure distribution
• Stability requirements

The design algorithm minimizes unnecessary material usage while maintaining structural safety, serviceability, and practical constructability.

Support for Multiple Footing Configurations

The software supports different combined footing arrangements including:

• Rectangular combined footings
• Trapezoidal combined footings

The flexible modeling capability enables the software to accommodate varying:

• Column spacings
• Column load magnitudes
• Property line restrictions
• Soil pressure conditions

This makes the application suitable for a broad range of practical foundation engineering scenarios.

Comprehensive Structural and Stability Checks

The application performs detailed design verifications including:

• Safe Bearing Capacity (SBC) checks
• One-way shear checks
• Two-way shear checks
• Flexure checks
• Soil pressure distribution checks
• Uplift checks
• Sliding checks
• Overturning checks

The software automatically identifies governing loading conditions and ensures that all critical structural and stability requirements are satisfied.

Handling of Multiple Load Combinations

The software is capable of processing multiple load combinations involving:

• Axial loads
• Moments
• Eccentric loading conditions
• Combined column actions

All governing load cases are identified automatically, thereby reducing manual effort and minimizing the possibility of overlooking critical design conditions.

This feature is particularly useful for heavily loaded industrial and infrastructure foundations.

Realistic Soil Pressure Evaluation

The software intelligently evaluates:

• Soil pressure variation
• Eccentric loading effects
• Resultant load positioning
• Contact pressure distribution

The application ensures that the footing design remains compatible with the allowable soil bearing capacity and project-specific geotechnical requirements.

The software may also assist in controlling excessive differential pressure distribution and undesirable footing behavior.

Automated Reinforcement Design and Detailing

The software automatically determines reinforcement requirements for:

• Longitudinal reinforcement
• Transverse reinforcement
• Bottom reinforcement zones
• Top reinforcement zones
• Pedestal connection regions

The reinforcement detailing logic is developed to produce practical and constructible reinforcement arrangements suitable for site execution and fabrication.

Detailed Engineering Output

The software generates highly organized engineering outputs including:

• Step-by-step design calculations
• Input summaries
• Formula-based calculations
• Stability verification summaries
• Reinforcement calculations
• Soil pressure evaluations
• Design code references
• Comprehensive BOQ

The outputs are structured for convenient engineering review, documentation, and approval workflows.

Automated CAD Drawings and BBS

The software can automatically generate CAD drawings featuring:

• Combined footing layouts
• Reinforcement detailing
• Pedestal locations
• Cross-sectional views
• Reinforcement arrangements

An optional Bar Bending Schedule (BBS) may also be generated including:

• Bar shapes
• Cut lengths
• Bar quantities
• Diameter-wise reinforcement summaries

This significantly improves coordination between design, detailing, fabrication, and construction teams.

Practical Industry-Oriented Engineering Solution

The Combined Footing Design Tool is suitable for a wide range of engineering applications including:

• Industrial foundations
• Commercial building foundations
• Boundary-adjacent column foundations
• Equipment foundations
• Infrastructure projects
• Multi-column structural systems

The software is particularly beneficial for consulting engineers, structural designers, geotechnical engineers, and EPC organizations seeking an efficient and dependable combined footing design solution.

Its intelligent automation, integrated structural and geotechnical verification, and comprehensive engineering outputs make it a highly productive professional foundation engineering tool.
