Overview

The Stormwater Drain Sizing Tool is an automated engineering application developed for the hydraulic design of gravity-based stormwater drainage systems. The software utilizes Manning’s equation to determine the required drain dimensions capable of safely conveying stormwater runoff while maintaining acceptable flow velocities.

The application is intended for use in infrastructure, industrial, municipal, commercial, and site development projects where reliable and efficient stormwater drainage design is essential.

Manning’s Equation-Based Hydraulic Design

The software performs drain sizing using Manning’s equation for open channel flow velocity calculations.

The design methodology considers:

• Required discharge capacity
• Flow velocity
• Drain slope
• Hydraulic characteristics of the selected drain shape

This enables accurate determination of drain dimensions suitable for gravity-based stormwater systems.

Non-Silting and Non-Scouring Velocity Control

A key feature of the software is its ability to design drains for flow velocities that are both:

• Non-silting
• Non-scouring

Users may define:

• Upper velocity limits
• Lower velocity limits

This ensures that the designed drainage system maintains sufficient self-cleansing capability while preventing excessive erosion or damage to the drain surface.

The feature helps produce hydraulically stable and practically maintainable drainage systems.

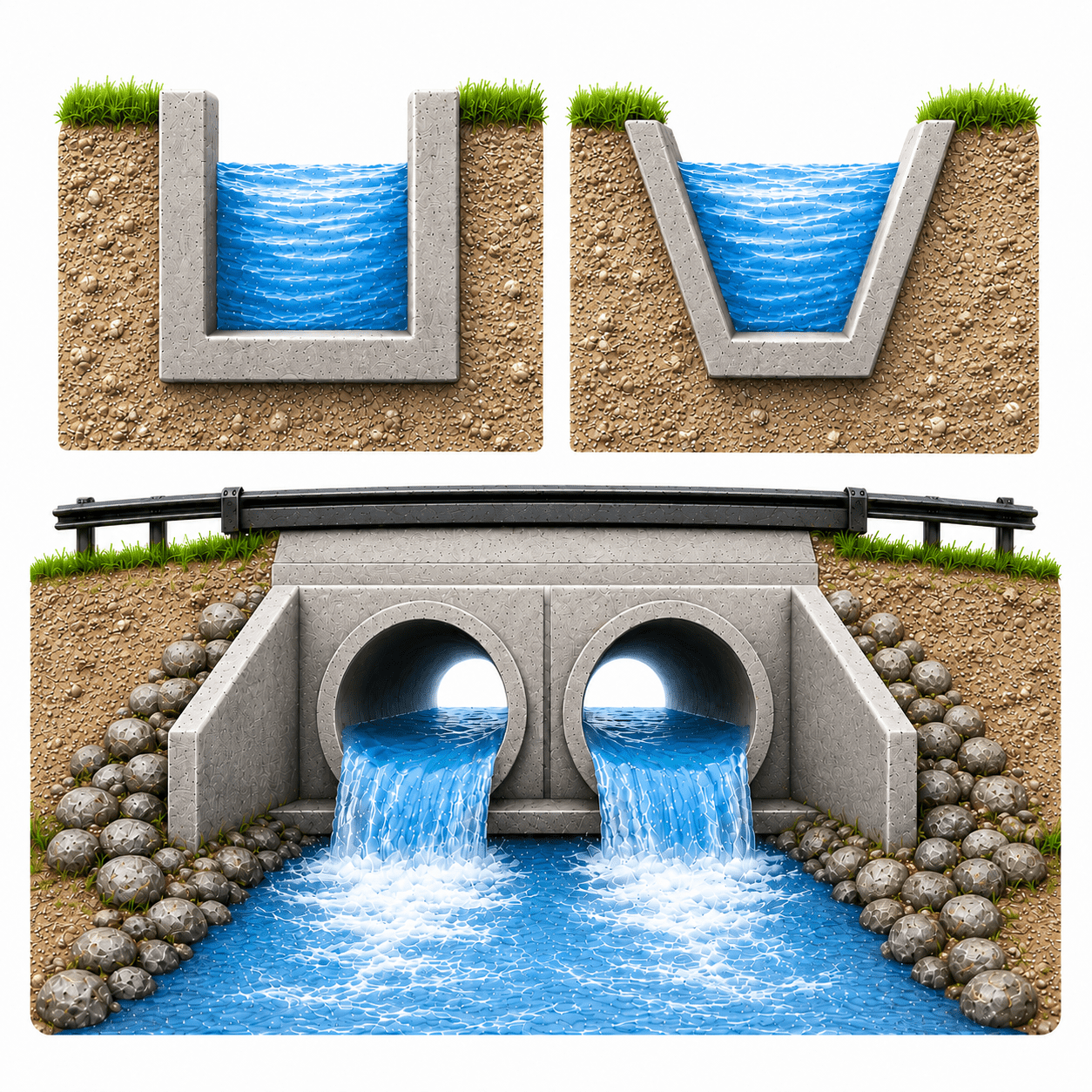

Multiple Drain Geometry Options

The software supports the design of stormwater drains in the following configurations:

• Rectangular drains
• Trapezoidal drains
• Circular drains

This flexibility enables the software to be used for a wide variety of drainage applications encountered in:

• Industrial facilities
• Roads and highways
• Municipal infrastructure
• Plant drainage systems
• Site development projects

Flexible Freeboard Specification

The application allows users to define freeboard using either of the following approaches:

• Absolute freeboard value
• Percentage of drain depth or diameter

This provides greater flexibility for compliance with project specifications, municipal standards, and engineering best practices.

The software automatically incorporates the specified freeboard while determining the final drain dimensions.

Rainfall and Site Parameter Integration

The software determines the required drain cross-section based on important hydraulic and site parameters including:

• Rainfall intensity
• Site characteristics
• Drain slope
• Required discharge
• Velocity limitations

This integrated approach enables realistic and project-oriented drainage design suitable for varying environmental and site conditions.

Automated and Efficient Drain Sizing

The software significantly reduces the manual effort associated with conventional hydraulic drain calculations.

Key advantages include:

• Faster drain sizing
• Reduced calculation errors
• Automated hydraulic evaluation
• Improved design consistency
• Practical and economical drain dimensions

The software is particularly beneficial for consulting engineers, infrastructure designers, municipal projects, industrial developments, and drainage planning applications.

Practical Engineering Output

The software generates organized design outputs including:

• Hydraulic calculation summaries
• Flow velocity calculations
• Drain sizing details
• Selected drain dimensions
• Freeboard information
• Hydraulic parameter summaries

The structured outputs facilitate easy engineering review, documentation, and implementation during project execution.

Industry-Oriented Drainage Solution

The Stormwater Drain Sizing Tool is suitable for a broad range of applications including:

• Industrial drainage systems
• Roadside drains
• Municipal stormwater networks
• Plant drainage systems
• Site grading and drainage projects
• Infrastructure developments

Its automation capability, hydraulic accuracy, and practical engineering approach make it a dependable and efficient solution for professional stormwater drainage design.
